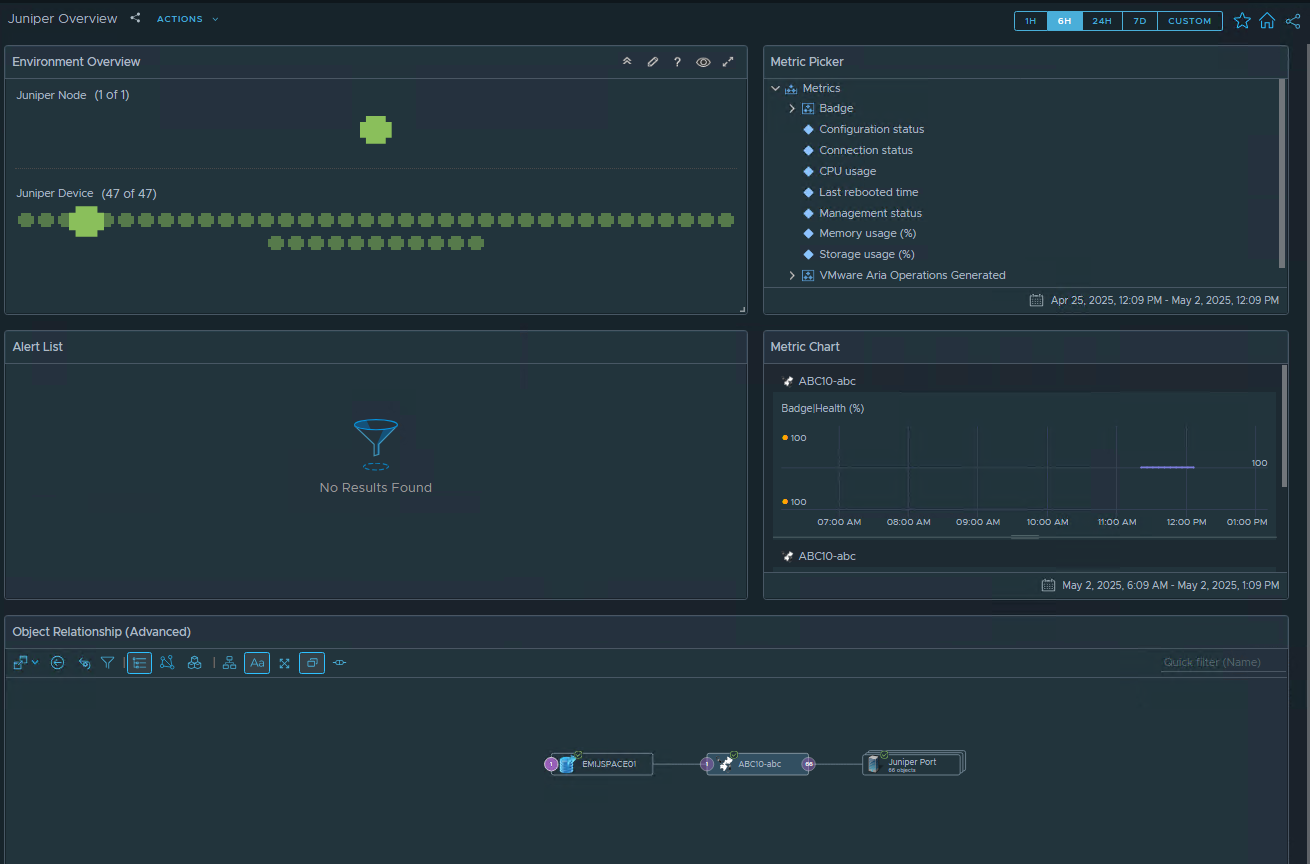

Overview
Collected objects
Relationships
Diagram illustrating the connections between objects, referred to as relationships.
In the 'Juniper Junos Space Addon' the relationships between objects play a crucial role in structuring and managing network infrastructure data. These relationships define how nodes, devices, and ports are interconnected, providing a clear and organized view of the system's hierarchy and its components.
The relationship diagram illustrates a hierarchy that follows this structure:
- The Node represents the top-level object, serving as the central entity in the hierarchy. It may correspond to a physical or logical group within the network infrastructure.
- The Device is directly connected to the Node, representing the hardware or network element being managed within the system.
- From the Device, the hierarchy further extends to the Port, which represents the specific interfaces or connection points on the device.
This hierarchical structure ensures a clear mapping of network relationships, enabling efficient management of nodes, devices, and their respective ports within the 'Juniper Junos Space Addon' environment.
Juniper Node
Represents a network node within the Junos Space environment.
Data Name | Type | Description |
---|---|---|
CPU usage | Metric | CPU usage of the node |
Database status | Metric | Database status where 1=UP, 0=DOWN, -1=UNKNOWN |
node ID | Metric | Unique identifier for the node |
Memory usage | Metric | Memory usage of the node |
Status | Metric | Operational status of the node where 1=UP, 0=DOWN, -1=UNKNOWN |
Storage | Metric | Storage usage of the node |
SWAP usage | Metric | SWAP memory usage of the node |
Last boot time | Property | Last boot time of the node |
Last monitored time | Property | Last time the node was monitored |
Management IP V4 | Property | Management IPv4 address of the node |
Name | Property | User-friendly name of the node |
Node Name | Property | Technical name of the node |

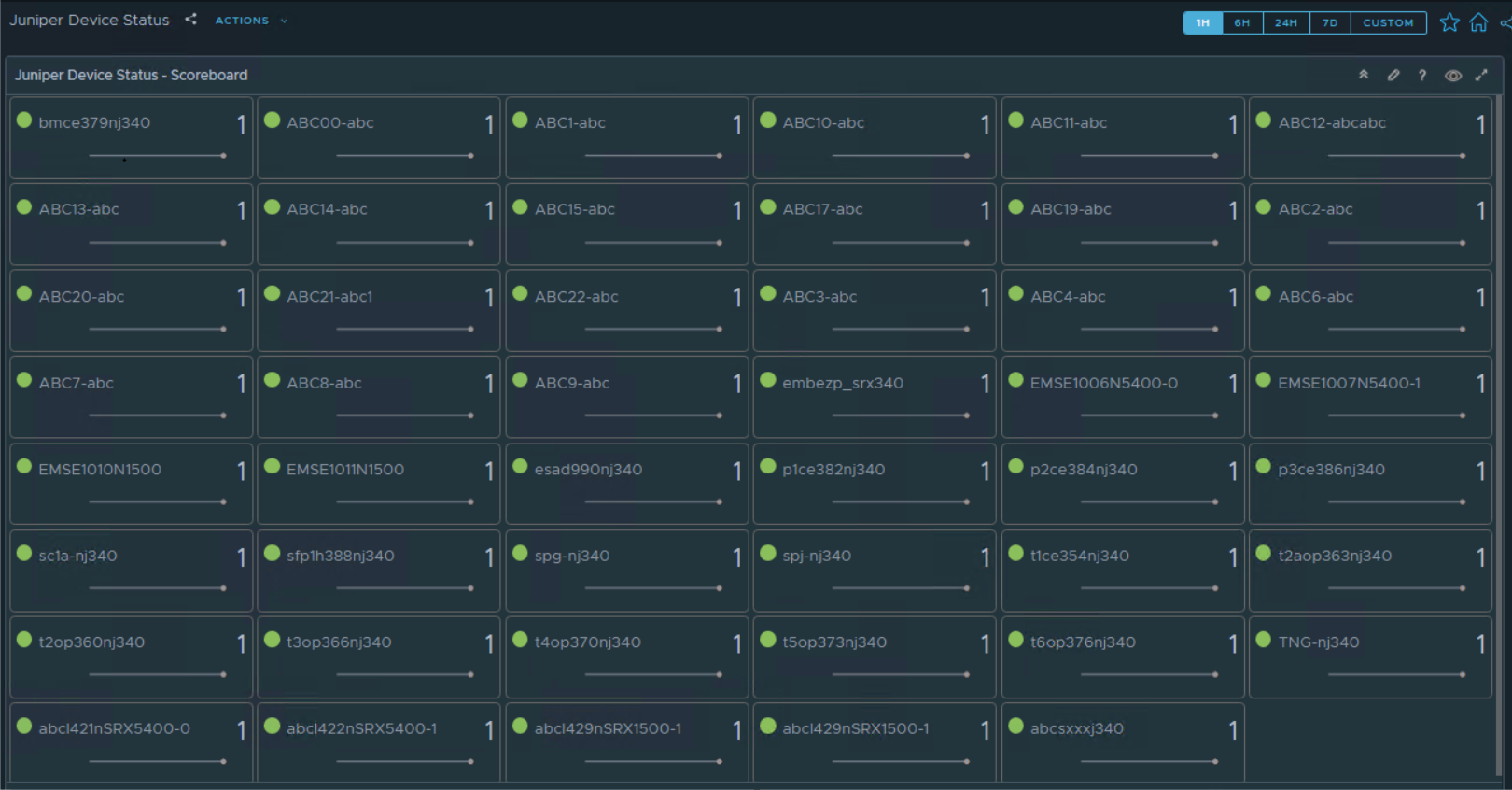

Juniper Device
Represents a managed device within the Junos Space environment.
Data Name | Type | Description |
---|---|---|
Configuration Status | Metric | Configuration status of the device where 1=In sync, 0=Out of sync, -1=UNKNOWN |
Connection Status | Metric | Connection status of the device where 1=UP, 0=DOWN, -1=UNKNOWN |
CPU | Metric | CPU usage of the device |
Last rebooted time | Metric | Last reboot time of the device |
Management Status | Metric | Management status of the device where 1=IN SYNC, 0=OUT OF SYNC, -1=UNKNOWN |
Memory usage | Metric | Percentage of memory usage of the device |
Storage usage | Metric | Percentage of storage usage of the device |
Authentication Status | Property | Authentication status of the device |
Connection Type | Property | Type of connection used by the device |
Device Type | Property | Type/category of the device |
Device-ID | Property | Unique identifier for the device |
Device-IP | Property | IP address of the device |
Display Name | Property | User-friendly display name of the device |
Matching Schema | Property | Schema used to match the device configuration |
Name | Property | Name of the device |
Platform | Property | Platform or operating system of the device |
Juniper Port
Represents a network port on a device within the Junos Space environment.
Data Name | Type | Description |
---|---|---|
Admin status | Metric | Administrative status of the device where 1=UP, 0=DOWN, -1=UNKNOWN |
Mtu | Metric | Maximum Transmission Unit size |
Operation status | Metric | Operational status of the device where 1=UP, 0=DOWN, -1=UNKNOWN |
Speed | Metric | Speed of the device's connection |
Name | Property | Name of the device |
Port ID | Property | Identifier for the device's port |
Alerts
The following alerts are defined by the Junos Space Management Pack, offering comprehensive real-time monitoring and insights into the health, performance, and status of Junos Space elements. These alerts are designed to notify administrators of potential issues, helping ensure the network operates smoothly and minimizing downtime.
CPU Utilization Alerts
Warning Level:
- Symptom: Junos Space device CPU utilization is at a warning level.
- Metric: CPU > 70%.
Critical Level:
- Symptom: Junos Space device CPU utilization is at a critical level.
- Metric: CPU > 80%.
Memory Utilization Alerts
Warning Level:
- Symptom: Junos Space device memory utilization is at a warning level.
- Metric: Memory > 70%.
Critical Level:
- Symptom: Junos Space device memory utilization is at a critical level.
- Metric: Memory > 80%.
Storage Utilization Alerts
Warning Level:
- Symptom: Junos Space device storage utilization is at a warning level.
- Metric: Storage > 70%.
Critical Level:
- Symptom: Junos Space device storage utilization is at a critical level.
- Metric: Storage > 80%.
Port Operation Status Alerts
Critical Level:
- Symptom: One or more ports experience an operation status problem.
- Admin Status: Up.
- Operation Status: Not equal to Up.
